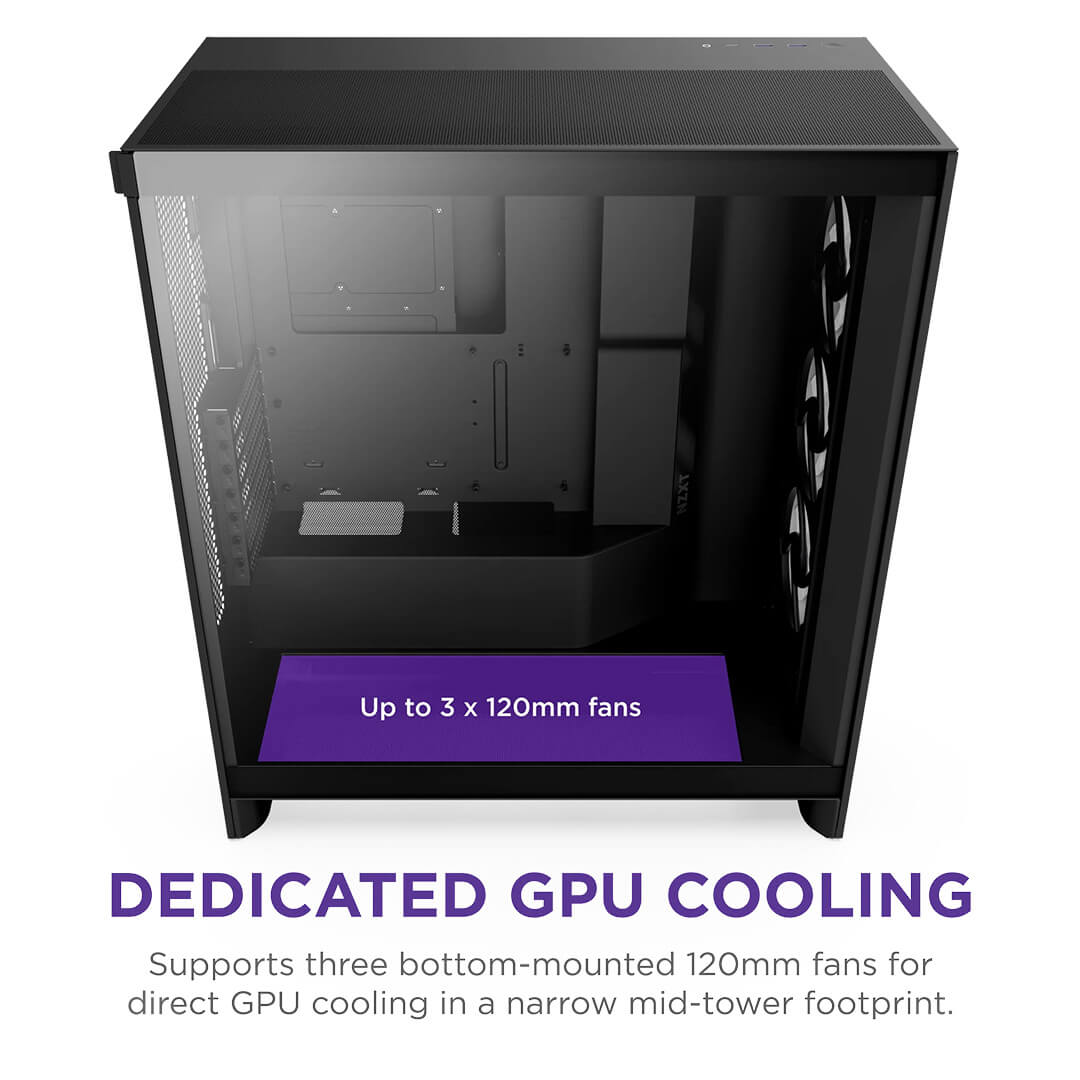

Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
Large Radiator Support

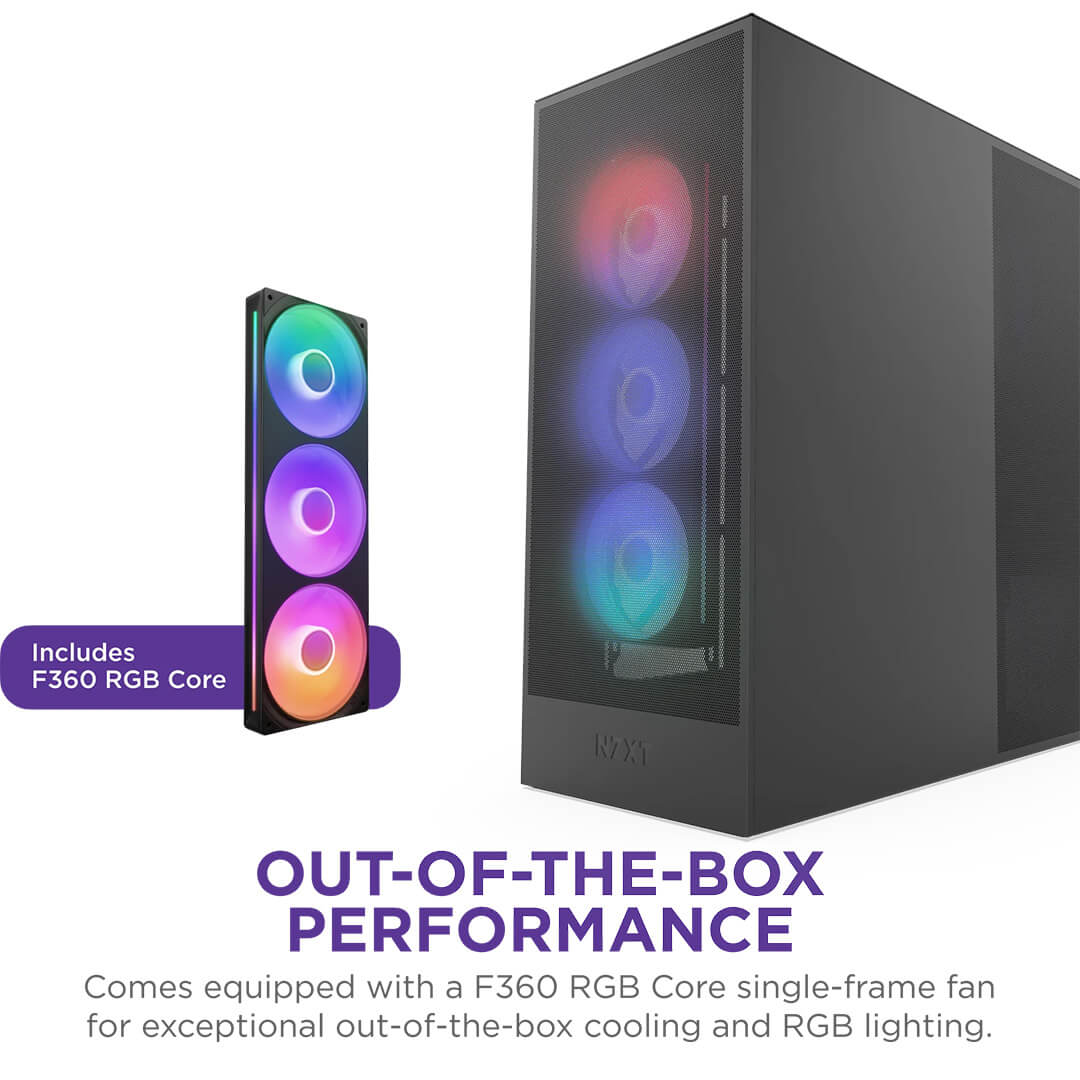

Comes equipped with a F360 RGB Core single-frame fan for out-of-the-box cooling and RGB lighting.

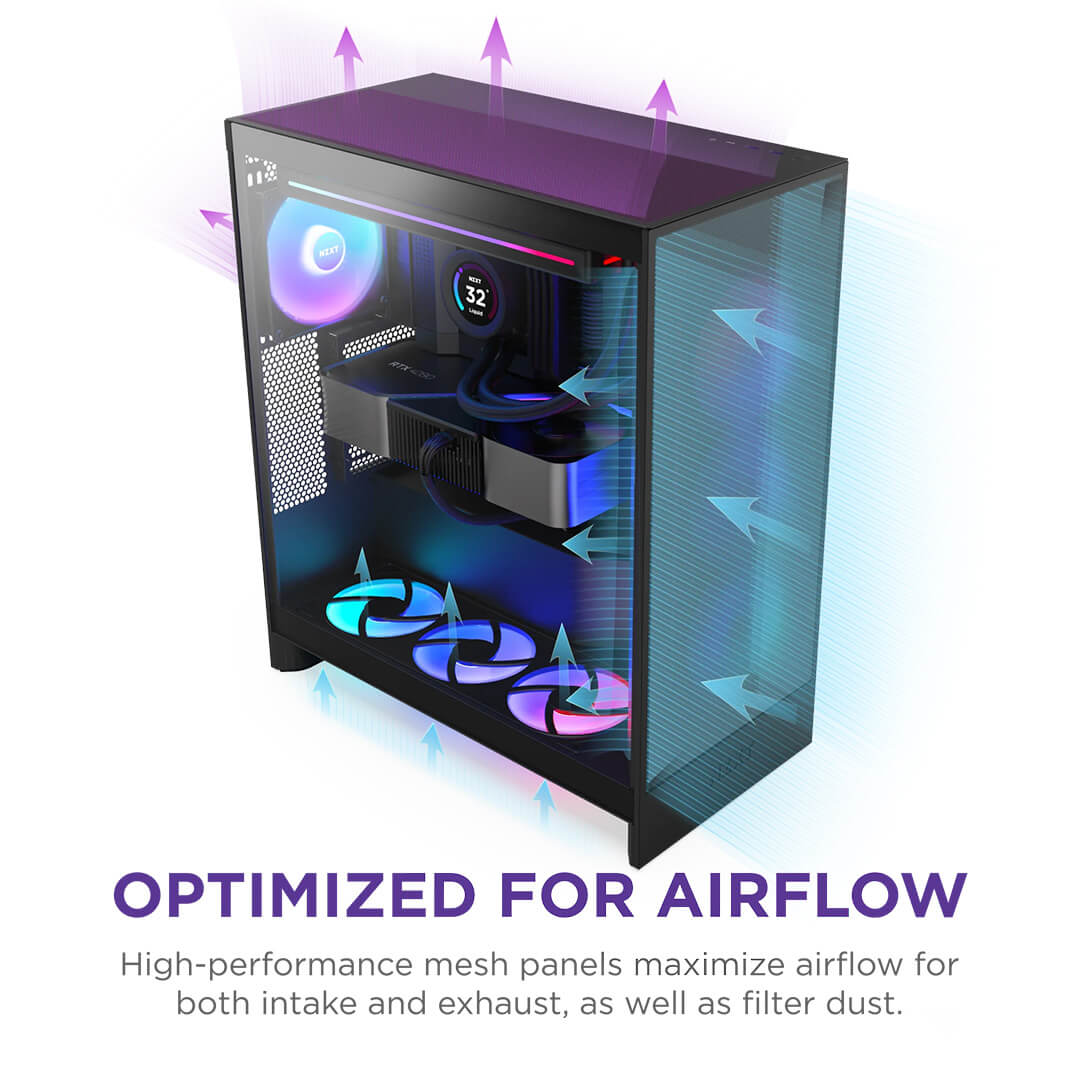

Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.

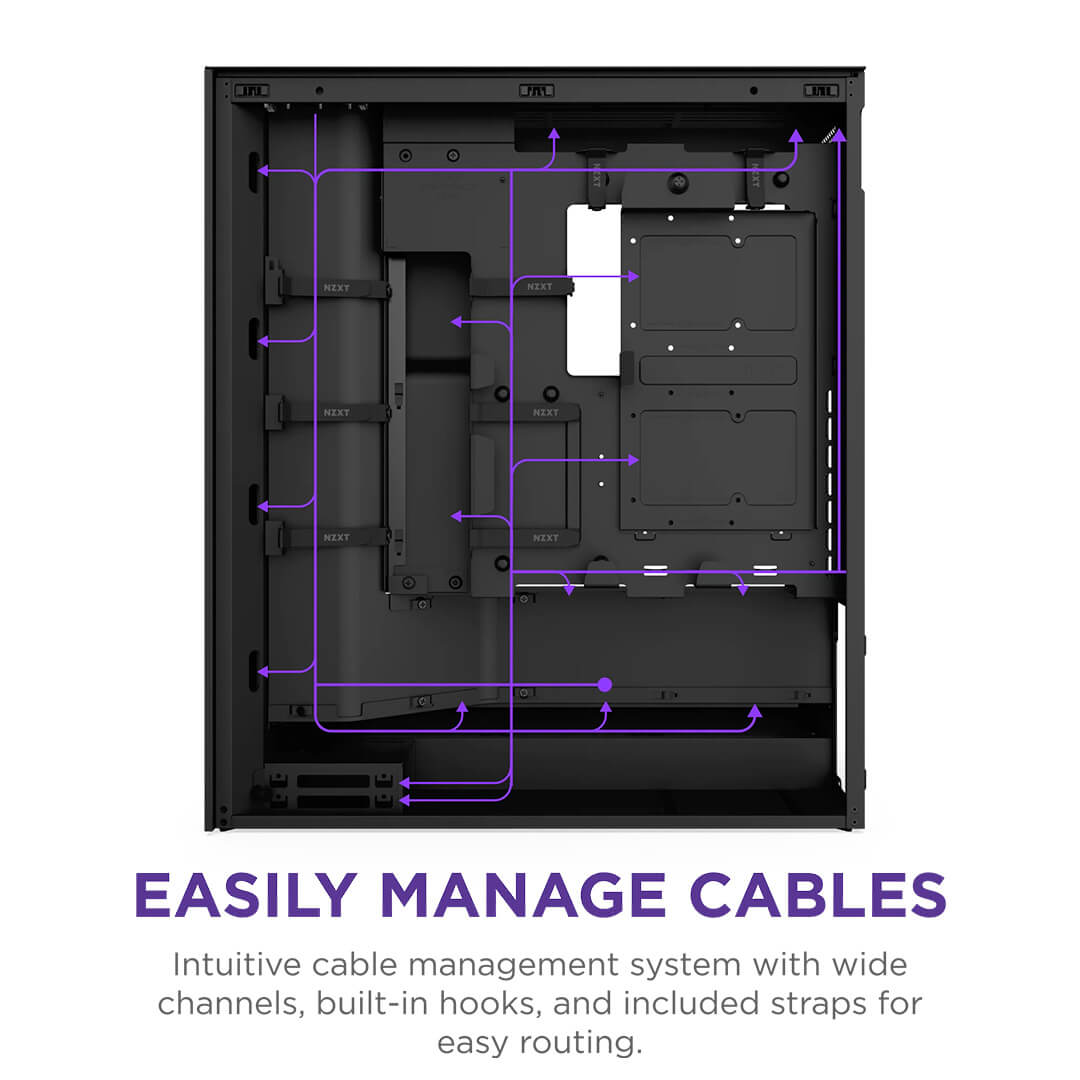

Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.

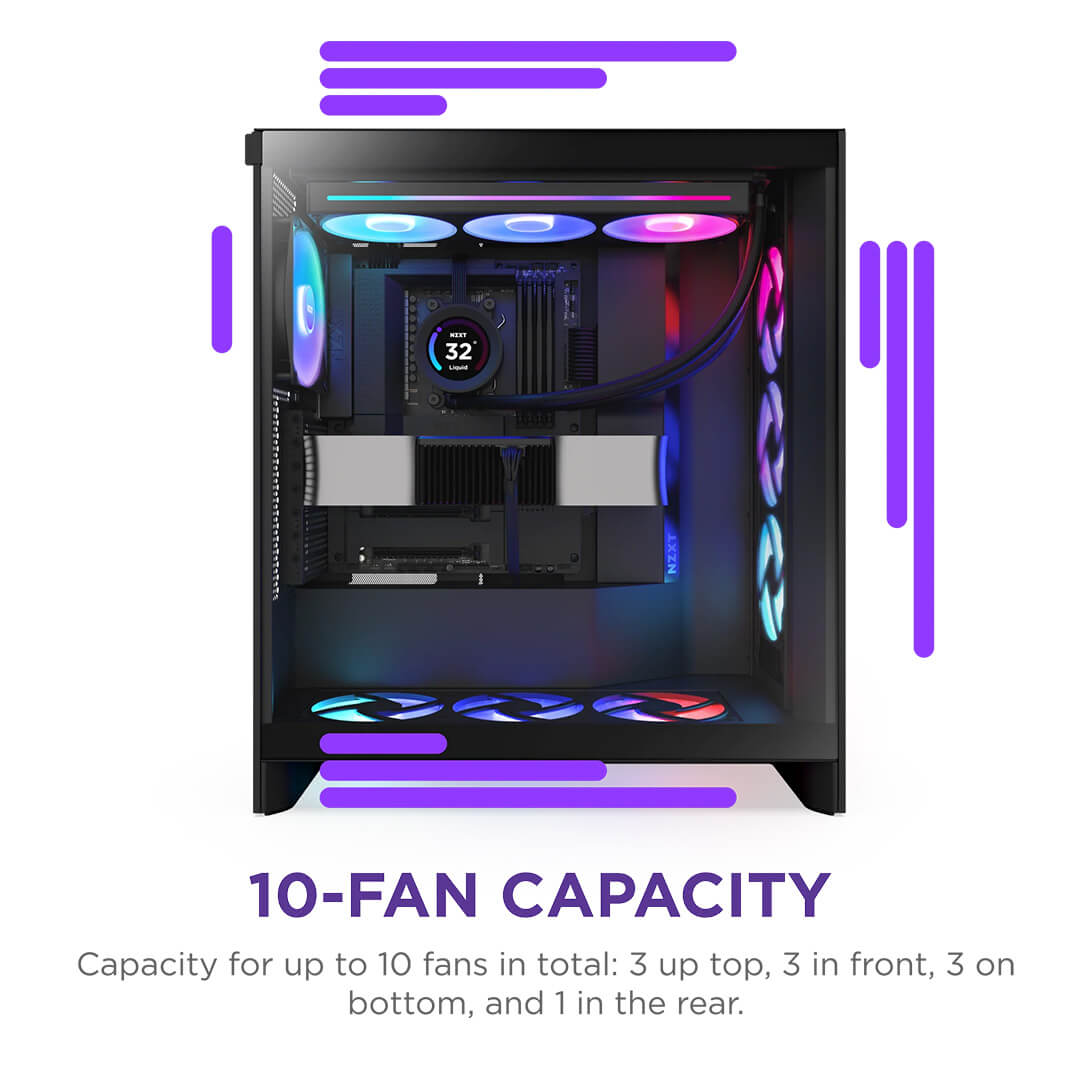

10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.

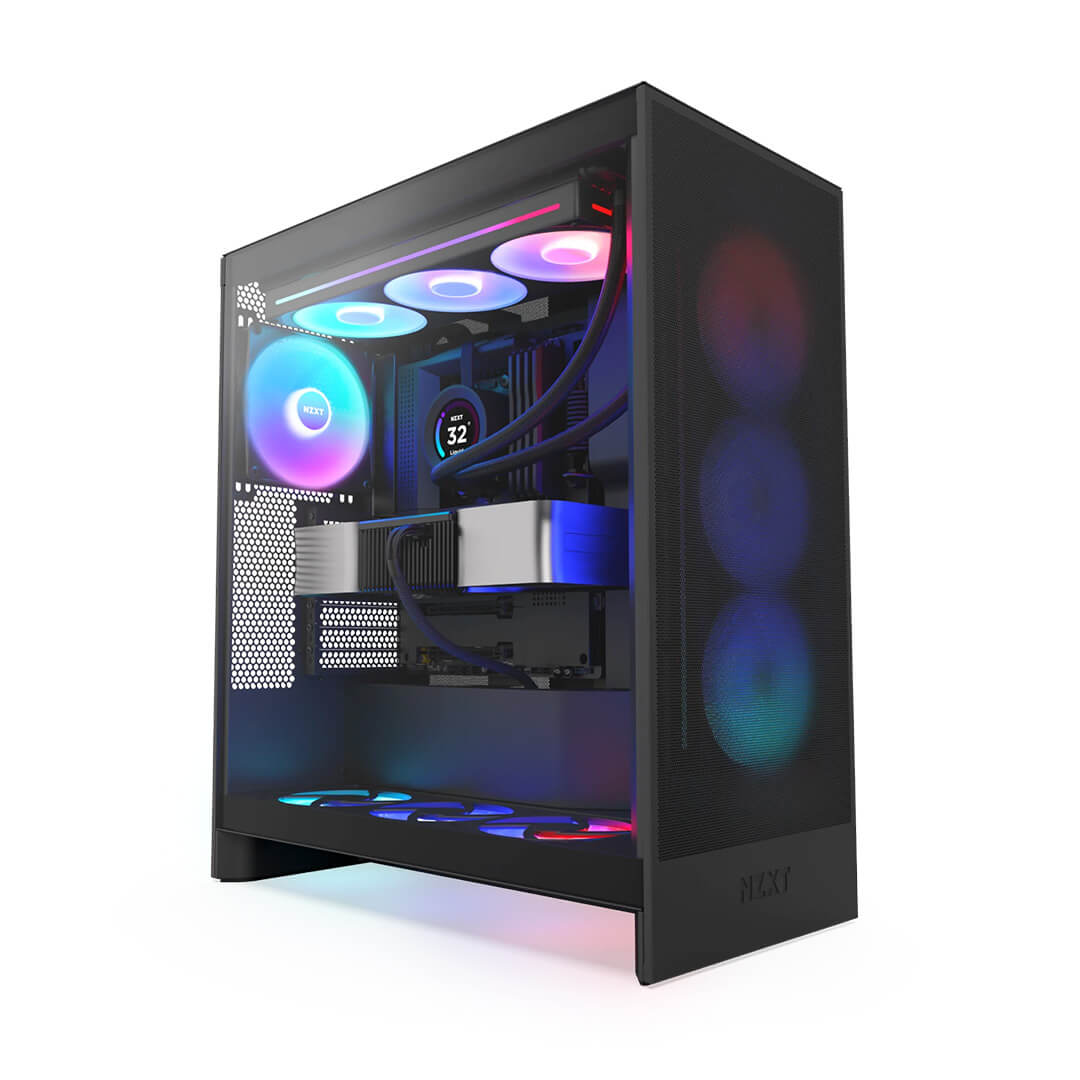

Nzxt H7 Flow RGB 2024 Edition E-ATX Mid Tower Cabinet (Black)
| Weight | 11.15 kg |
|---|---|
| brands | NZXT |
| Motherboard Support | E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX |
|---|---|
| Enclosure Type | Mid-Tower |
| Case Material | SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black) |
| Model | F360 RGB Core Fan (Case Version) |
| Speed | 1,700 ± 200 RPM |
| Airflow | 50.1 CFM |
| Static | 1.27 mm-H₂O |
| Noise | 23.3 dBA |
| Fan Connector | 3-pin DC |

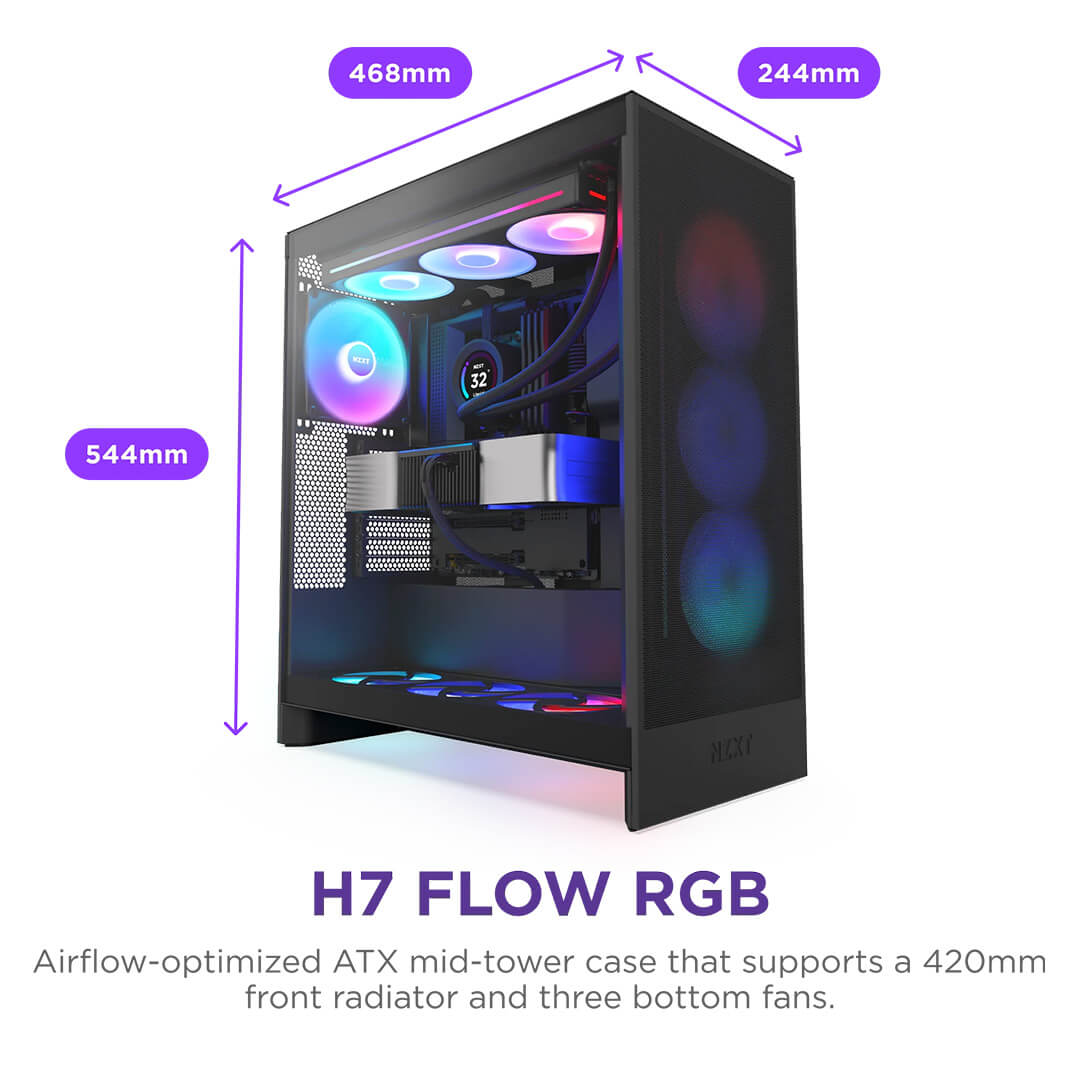

| Height (With Feet) | 544 mm |
| Width | 244 mm |
| Depth | 468 mm |
| Weight | 11.13 kg |
| CPU Cooler Height | Up to 185mm |
| GPU Length | Up to 410 mm |
| PSU Length | Up to 200 mm |
| Cable Management | Up to 34.5 mm |
| Top Mounted Radiator & Fan Combined Thickness | Up to 57 mm (140mm / 280mm) |
| USB 3.2 Gen 1 Type-A | 2 |
| USB 3.2 Gen 2×2 Type-C (20 Gbps) | 1 |
| Headset Audio Jack | 1 |
| Expansion Slots |
Standard 7 |
| Vertical | 0 |
| Drive Bays |
2.5″ 2+2 3.5″ 2 |
| Front | 3 x 120 mm / 3 x 140 mm (1 x F360 RGB Core included) |
| Top | 3 x 120 mm / 2 x 140 mm |
| Bottom | 3 x 120 mm |
| Rear | 1 x 120 mm / 1 x 140 mm |
| Filters | High-Performance Mesh |
| Radiator Support |
Front Up to 420 mm |
| Top | Up to 360mm |
| Rear | Up to 140mm |
| Warranty | 2 years |
| Model Number | CM-H72FB-R1 |
| UPC | 810074845571 |
| EAN | 5056547205526 |
