Intel Core i5-12400 12 Gen Processor – BX8071512400

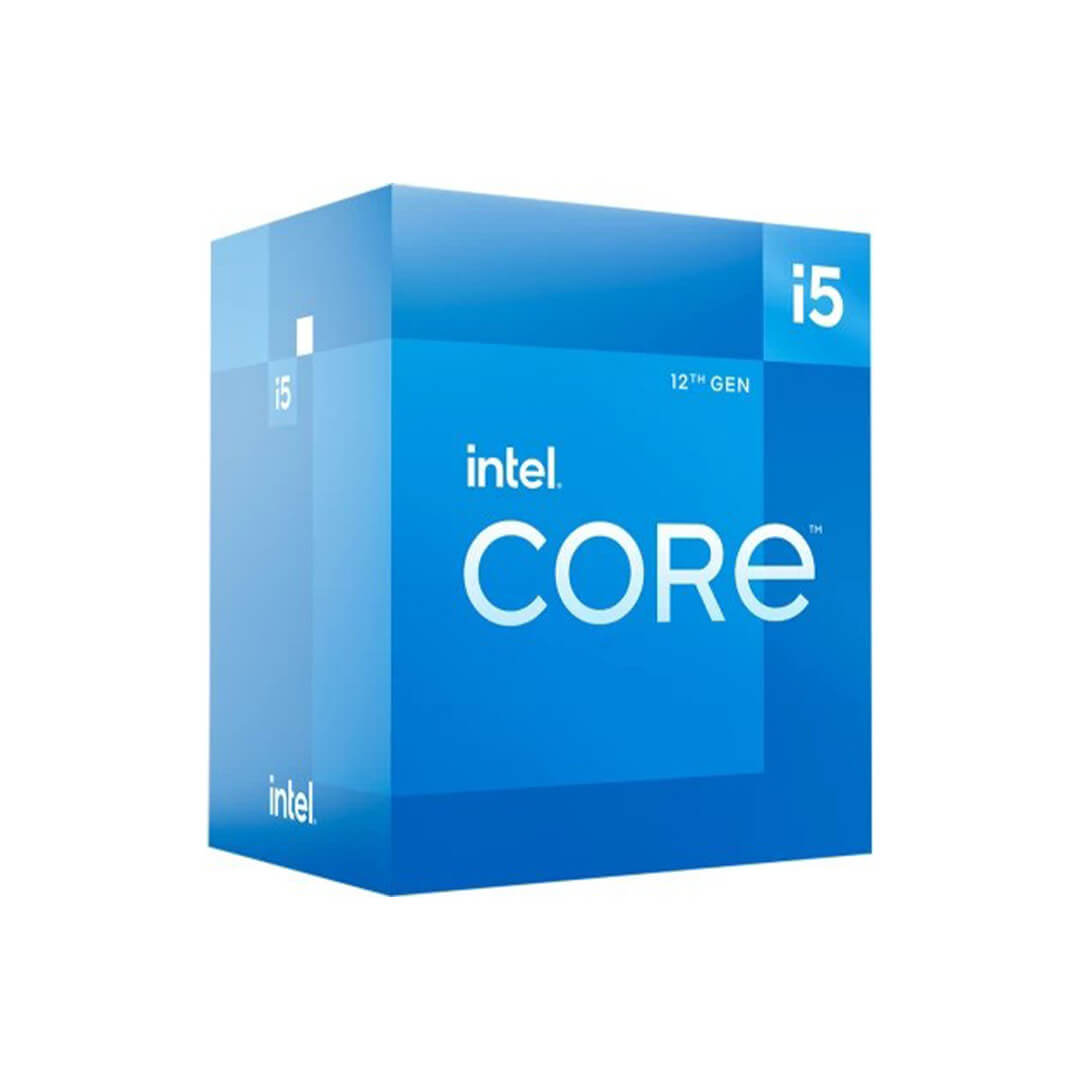

Intel Core i5 12400 2.5GHz (4.4GHz max clock speed), 6 Cores, 12 Thread CPU, Socket LGA 1700, 18MB SmartCache, 65W processor based power, BX8071512400. Retail box including fan, heatsink and thermal paste.
Intel Core i5-12400 12 Gen Processor - BX8071512400
| Weight |
0.1 kg |
| BRANDS |
INTEL
|
CPU Specifications
| Total Cores |
6 |
| # of Performance-cores |
6 |
| # of Efficient-cores |
0 |
| Total Threads |
12 |
| Max Turbo Frequency |
4.40 GHz |
| Performance-core Max Turbo Frequency |
4.40 GHz |
| Performance-core Base Frequency |
2.50 GHz |
| Cache |
18 MB Intel® Smart Cache |
| Total L2 Cache |
7.5 MB |
| Processor Base Power |
65 W |
| Maximum Turbo Power |
117 W |
Supplemental Information
| Embedded Options Available |
Yes |
Memory Specifications
| Max Memory Size (dependent on memory type) |
128 GB |
| Memory Types |
Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s |
| Max # of Memory Channels |
2 |
| Max Memory Bandwidth |
76.8 GB/s |
Processor Graphics
| Processor Graphics ‡ |
Intel® UHD Graphics 730 |
| Graphics Base Frequency |
300 MHz |
| Graphics Max Dynamic Frequency |
1.45 GHz |
| Graphics Output |
eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units |
24 |
| Max Resolution (HDMI)‡ |
4096 x 2160 @ 60Hz |
| Max Resolution (DP)‡ |
7680 x 4320 @ 60Hz |
| Max Resolution (eDP – Integrated Flat Panel)‡ |
5120 x 3200 @ 120Hz |
| DirectX* Support |
12 |
| OpenGL* Support |
4.5 |
| Multi-Format Codec Engines |
1 |
| Intel® Quick Sync Video |
Yes |
| Intel® Clear Video HD Technology |
Yes |
| # of Displays Supported ‡ |
4 |
| Device ID |
0x4692 / 0x4682 |
| OpenCL* Support |
2.1 |
Expansion Options
| Direct Media Interface (DMI) Revision |
4.0 |
| Max # of DMI Lanes |
8 |
| Scalability |
1S Only |
| PCI Express Revision |
5.0 and 4.0 |
| PCI Express Configurations ‡ |
Up to 1×16+4, 2×8+4 |
| Max # of PCI Express Lanes |
20 |
Package Specifications
| Sockets Supported |
FCLGA1700, FCBGA1700 |
| Max CPU Configuration |
1 |
| Thermal Solution Specification |
PCG 2020C |
| TJUNCTION |
100°C |
| Package Size |
45.0 mm x 37.5 mm |
Advanced Technologies
| Intel® Gaussian & Neural Accelerator |
3.0 |
| Intel® Thread Director |
No |
| Intel® Deep Learning Boost (Intel® DL Boost) |
Yes |
| Intel® Optane™ Memory Supported ‡ |
Yes |
| Intel® Speed Shift Technology |
Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ |
No |
| Intel® Turbo Boost Technology ‡ |
2.0 |
| Intel® Hyper-Threading Technology ‡ |
Yes |
| Intel® Virtualization Technology (VT-x) ‡ |
Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ |
Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ |
Yes |
| Intel® 64 ‡ |
Yes |
| Instruction Set |
64-bit |
| Instruction Set Extensions |
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States |
Yes |
| Enhanced Intel SpeedStep® Technology |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Intel® Volume Management Device (VMD) |
Yes |
Security & Reliability
| Intel® AES New Instructions |
Yes |
| Secure Key |
Yes |
| Intel® OS Guard |
Yes |
| Execute Disable Bit ‡ |
Yes |
| Intel® Boot Guard |
Yes |
| Mode-based Execute Control (MBEC) |
Yes |
| Intel® Control-Flow Enforcement Technology |
Yes |
