-41%
,

Gigabyte Z790 AORUS PRO X WIFI7 Intel DDR5 LGA1700 Socket Motherboard

AorusGIGABYTE
Availability:

Out of stock


₹35,640.00 ₹60,000.00

Out of stock

Email when stock available

Posted on Google Google
Sahil Khan profile picture
Sahil Khan
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
Best shop in tricity good staff and nice owner sachin advice an all
Posted on Google Google
SKYTHEHUSKY11 profile picture
SKYTHEHUSKY11
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
Sachin as owner has very Good service and reliable helps in finding best specs at a genuine rate
Posted on Google Google
An nn profile picture
An nn
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
Visited the shop 3 days ago for my first PC build (Ryzen 5 + 5060 Ti). Dealt with Sachin paaji, his configuration suggestions were very helpful and perfectly matched my requirements. I checked a few other shops as well, but their prices were higher. GamersnComps gave me a much better and reasonable quotation. Went ahead with Sachin paaji recommendation and I’m fully satisfied with the build and pricing must visit 👍🏻
Posted on Google Google
Rajat Dhiman profile picture
Rajat Dhiman
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
Best shop for computer item purchases and best staff and owner sachin is very good in communication
Posted on Google Google
Himanshu pratap profile picture
Himanshu pratap
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
Good service by owner sachin Good work!
Posted on Google Google
immense focus 13 profile picture
immense focus 13
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
Excellent service and a very professional approach. The team is knowledgeable and genuinely tries to help rather than just sell. I felt respected as a customer and everything was handled smoothly. Truly a reliable place, and I would gladly visit again and recommend it to others.
Posted on Google Google
KIRANVIR MANKU profile picture
KIRANVIR MANKU
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
I had a very good experience with this shop. The staff was polite, helpful, and supportive throughout. Whenever I needed assistance, they were ready to help and guide properly. The service quality and customer handling were excellent. Based on my personal experience, I would definitely recommend this place.
Posted on Google Google
Vikram Mawari profile picture
Vikram Mawari
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
GamesNComps mai hamesha great experience raha, aur owner Sachin bhai bahut helpful, honest aur supportive hain. Highly recommended by me
Posted on Google Google
Akaal Murat profile picture
Akaal Murat
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
I’m here from the Akaal Murat YouTube channel. I read this comment and honestly felt sad, because we know the owner, Sachin, personally. He has always been very polite and supportive with us, especially whenever we needed technical or hardware help. Our experience with him has been completely positive. I believe this comment does not reflect the service we have received.

X Gen Designed for 14th Gen

X marks the 14th generation! Introducing the AORUS Z790 X Gen Motherboards, the most powerful platforms ever built for the Intel® Core™ 14th Gen processors. With the leading performance in DDR5 memory, the upgraded DIY-friendly innovations, and the all-new BIOS redesigned as user-centered, the AORUS Z790 X Gen Motherboards are built to fully unleash the next-gen power.

Xceed in DDR5 Performance

GIGABYTE is committed to enabling the unparalleled performance of the Intel® Core™ 14th Gen processors. That is why every Z790 AORUS PRO X WIFI7 motherboard is engineered with industry-leading technologies to achieve the best-in-class DDR5 performance on the market.

Xtraordinary Power Delivery

The Z790 AORUS PRO X WIFI7 motherboard is equipped with an all-digital power design to achieve peak performance of the next-gen processor while providing the best stability under heavy workloads.

Digital Twin VRM Design

Ensures stable high-power delivery for advanced overclocking.

Xpress Your Cool

Every Z790 AORUS PRO X WIFI7 motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.

Xpeditious building process

Building your own PC is meant to be joyful and effortless. Now we introduce a variety of innovations to make the Z790 AORUS PRO X WIFI7 motherboard the most DIY-friendly ever.

Xtra layers for excellent players

As the very foundation of the motherboard, the PCB plays a subtle yet critical role in the capabilities. No gamers should overlook the details lie within the PCB layers.

Xpect everything UD

GIGABYTE Ultra Durable™ Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. The Z790 AORUS PRO X WIFI7 motherboard is built to last longer and stand stronger.

Xtensively versatile

The Z790 AORUS PRO X WIFI7 motherboard offers a wide range of versatilities from cutting-edge Wi-Fi 7 support with a redesigned antenna to an array of USB ports.

Xplore infinite utilities

The Z790 AORUS PRO X WIFI7 motherboard is the embodiment of our relentless pursuit of BIOS optimization. And thanks to our new partnership with the community, we now make next-gen performance more accessible in even more intuitive ways.

SKU: Z790 AORUS PRO X WIFI7 Categories: ,

Gigabyte Z790 AORUS PRO X WIFI7 Intel DDR5 LGA1700 Socket Motherboard

Weight 4 kg
brands

Aorus, GIGABYTE

CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
* Please refer to “CPU Support List” for more information.
Chipset Intel® Z790 Express Chipset
Memory Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
– 1 x USB Type-C® port, supporting USB 2.0 and DisplayPort video outputs
and a maximum resolution of 1920×1080@30 Hz
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU or graphics card support.)
Audio Realtek® ALC1220-VB CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel® Wi-Fi 7 BE200 (For PCB rev. 1.0)
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.3
– Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Note:
Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)
Wi-Fi 7 channels on 6GHz band availability depends on individual country’s regulations.
Expansion Slots CPU:
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot shares bandwidth with the M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
– 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage Interface CPU:
– 1 x M.2 connector (Socket 3, M key, type 25110/2580 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
– 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
– 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB Chipset:
– 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
– 1 x USB Type-C® port onboard, with USB 2.0 support (Only available with the Intel® HD Graphics Processors.)
– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
– 2 x USB 3.2 Gen 1 ports available through the internal USB header
– 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
– 4 x USB 3.2 Gen 1 ports on the back panel
Chipset+USB 2.0 Hub:
– 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
1 x USB Type-C® port (DisplayPort), with USB 2.0 support (Only available with the Intel® HD Graphics Processors.)
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper

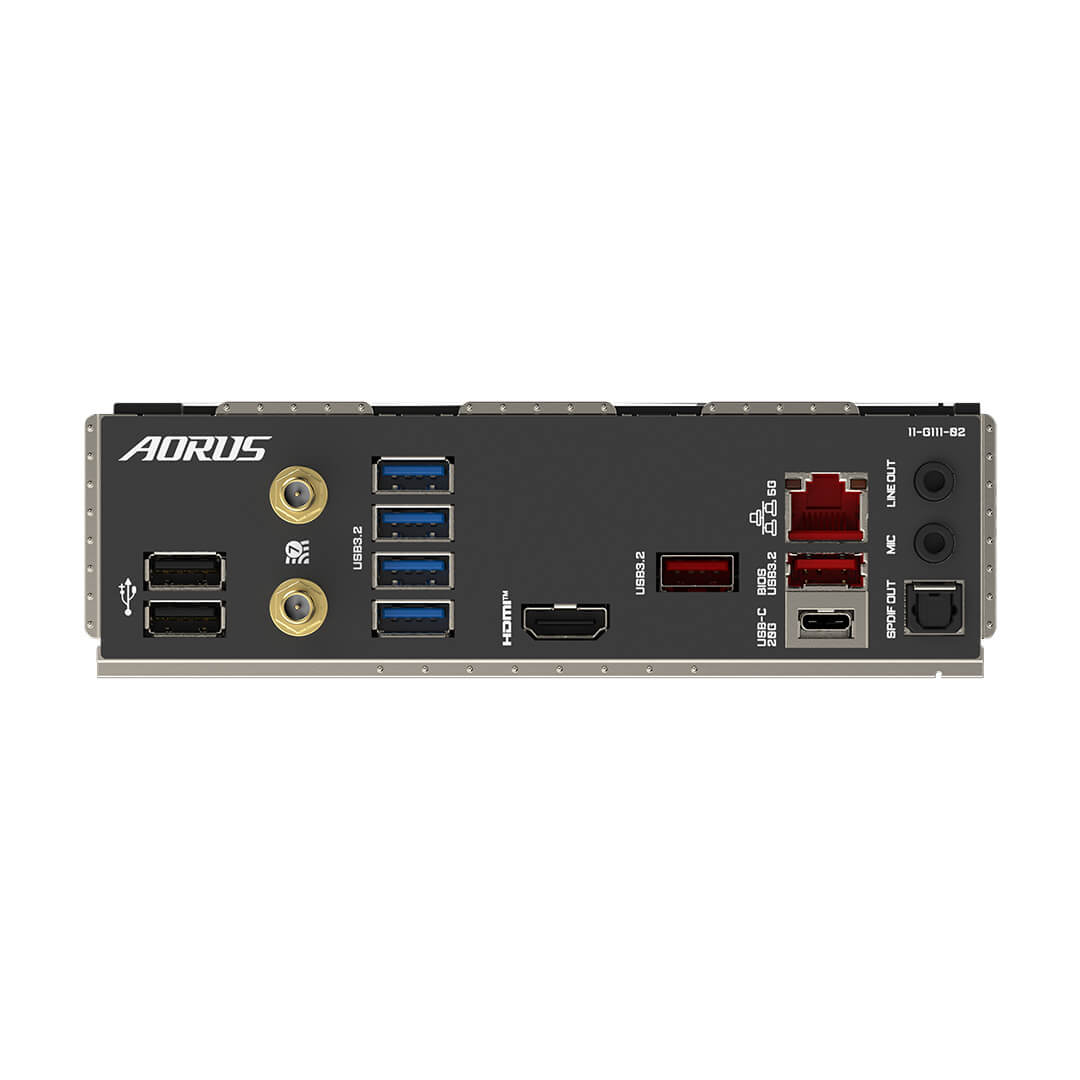

Back Panel Connectors 2 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
4 x USB 3.2 Gen 1 ports
1 x DisplayPort In port (Note)
1 x HDMI port
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System Support for Windows 11 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
