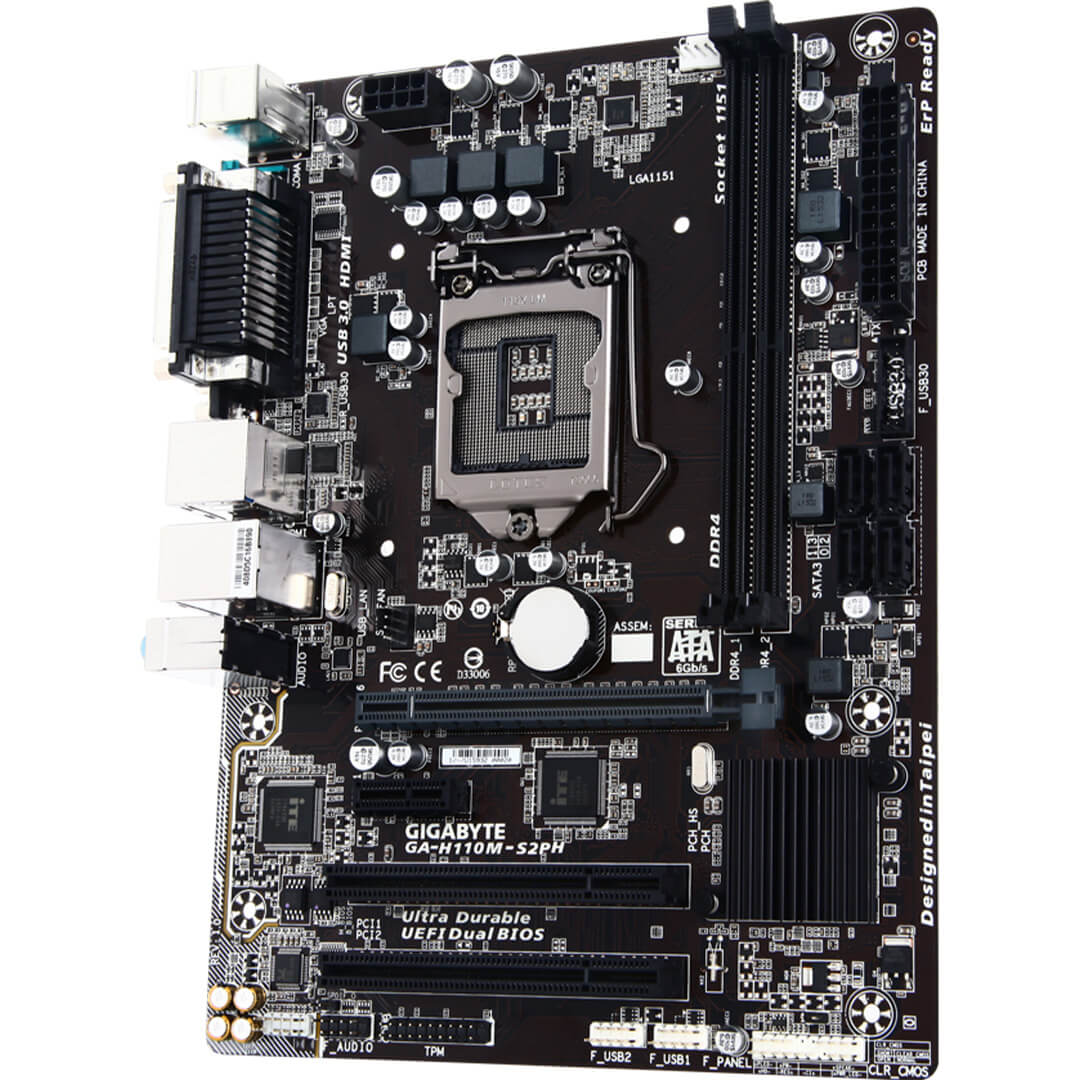

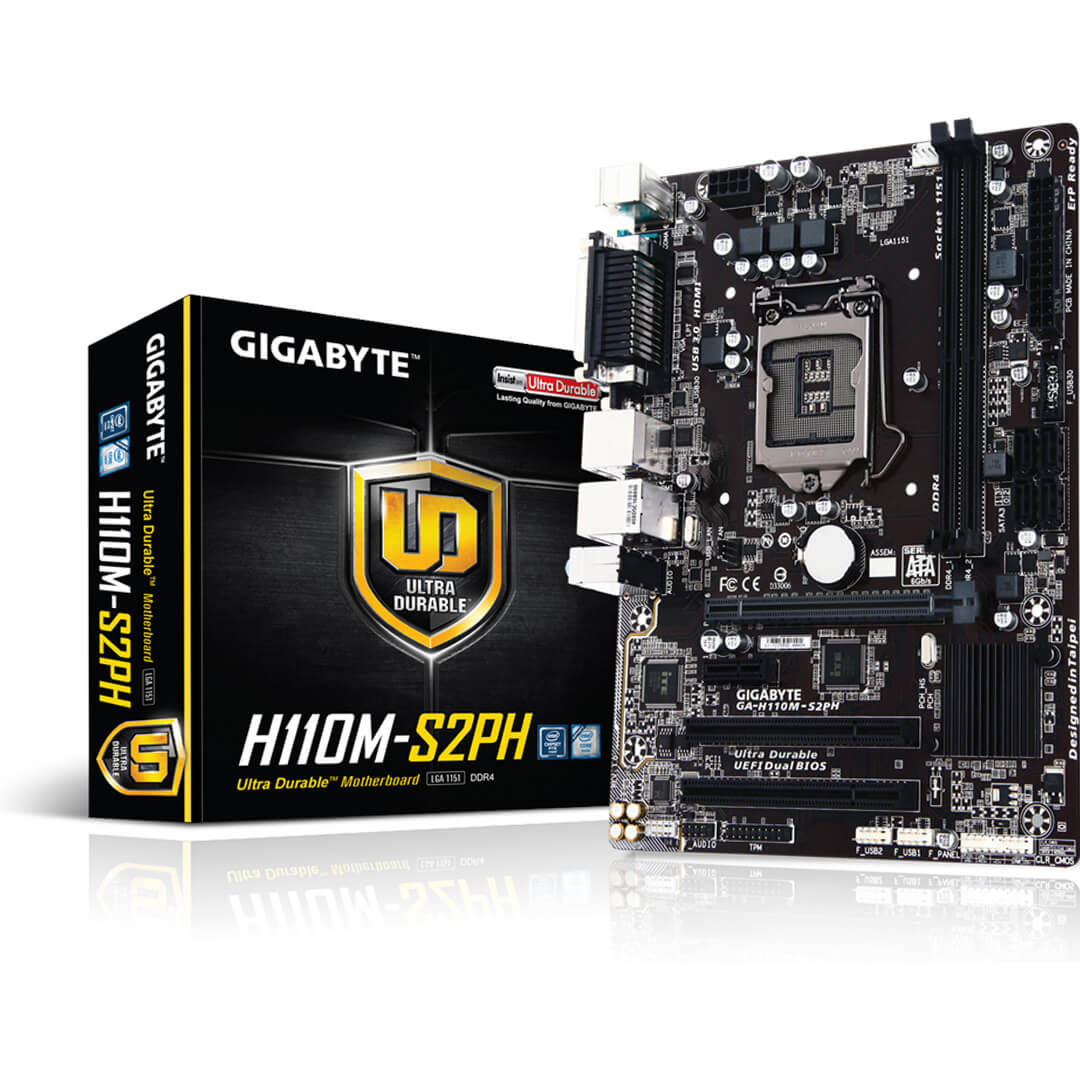

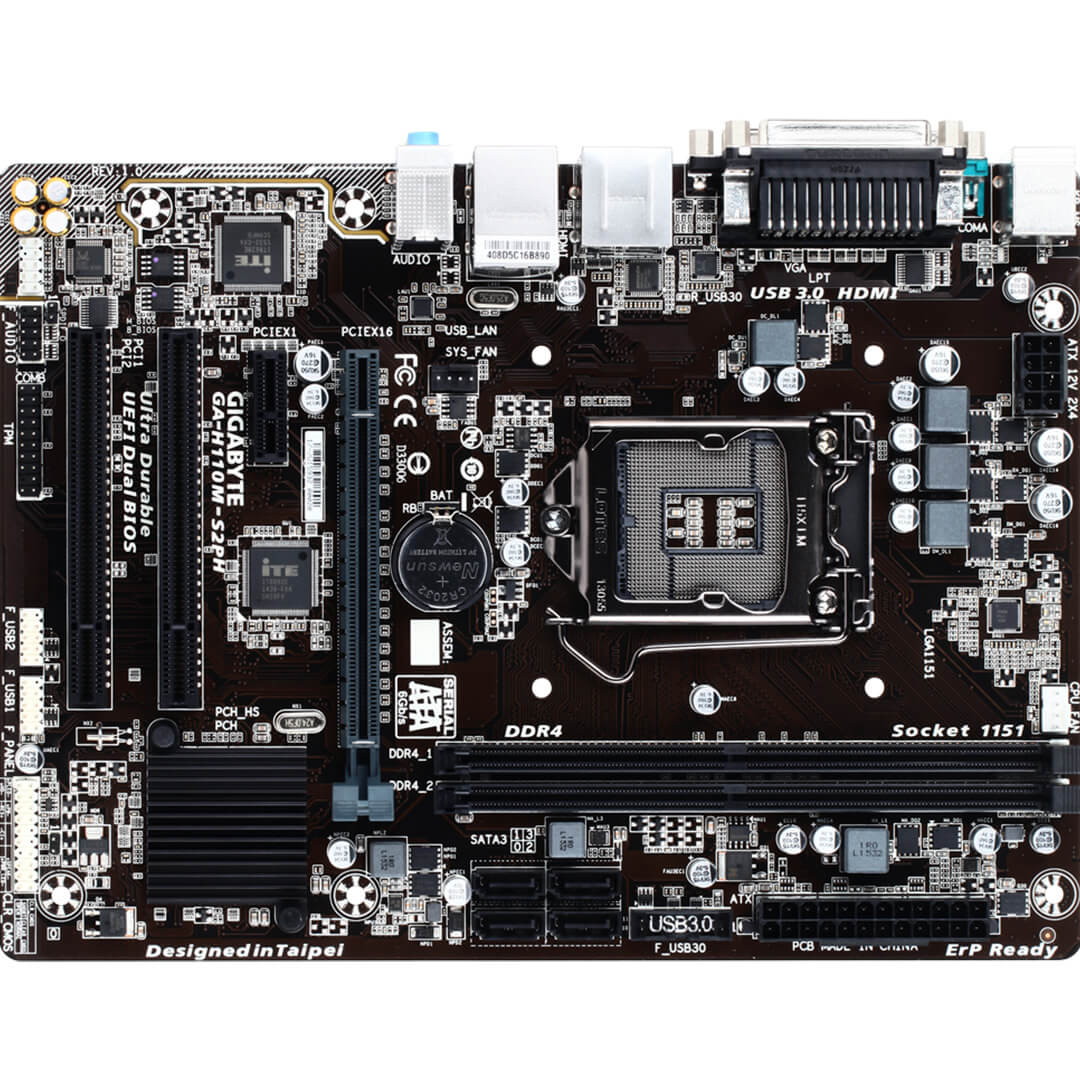

Gigabyte GA-H110M-S2PH INTEL Motherboard

GIGABYTE

₹11,299.00 ₹20,500.00

Posted on Google Google
Sahil Khan profile picture
Sahil Khan
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
Best shop in tricity good staff and nice owner sachin advice an all
Posted on Google Google
SKYTHEHUSKY11 profile picture
SKYTHEHUSKY11
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
Sachin as owner has very Good service and reliable helps in finding best specs at a genuine rate
Posted on Google Google
An nn profile picture
An nn
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
Visited the shop 3 days ago for my first PC build (Ryzen 5 + 5060 Ti). Dealt with Sachin paaji, his configuration suggestions were very helpful and perfectly matched my requirements. I checked a few other shops as well, but their prices were higher. GamersnComps gave me a much better and reasonable quotation. Went ahead with Sachin paaji recommendation and I’m fully satisfied with the build and pricing must visit 👍🏻
Posted on Google Google
Rajat Dhiman profile picture
Rajat Dhiman
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
Best shop for computer item purchases and best staff and owner sachin is very good in communication
Posted on Google Google
Himanshu pratap profile picture
Himanshu pratap
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
Good service by owner sachin Good work!
Posted on Google Google
immense focus 13 profile picture
immense focus 13
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
Excellent service and a very professional approach. The team is knowledgeable and genuinely tries to help rather than just sell. I felt respected as a customer and everything was handled smoothly. Truly a reliable place, and I would gladly visit again and recommend it to others.
Posted on Google Google
KIRANVIR MANKU profile picture
KIRANVIR MANKU
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
I had a very good experience with this shop. The staff was polite, helpful, and supportive throughout. Whenever I needed assistance, they were ready to help and guide properly. The service quality and customer handling were excellent. Based on my personal experience, I would definitely recommend this place.
Posted on Google Google
Vikram Mawari profile picture
Vikram Mawari
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
GamesNComps mai hamesha great experience raha, aur owner Sachin bhai bahut helpful, honest aur supportive hain. Highly recommended by me
Posted on Google Google
Akaal Murat profile picture
Akaal Murat
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
I’m here from the Akaal Murat YouTube channel. I read this comment and honestly felt sad, because we know the owner, Sachin, personally. He has always been very polite and supportive with us, especially whenever we needed technical or hardware help. Our experience with him has been completely positive. I believe this comment does not reflect the service we have received.

High Quality Onboard Audio Design

Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional users.
The above photos are for reference only.

Realtek GbE LAN with cFosSpeed Internet Accelerator Software

Realtek GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to delivery better responsiveness in a crowded LAN environments. Realtek GbE consumes significant less power when it’s in idle state in comparison with others.

GIGABYTE Ultra Durable ™ Motherboards

GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.

INTEL® SMALL BUSINESS BASICS

With 6th Generation Intel® Core™ Processor
Security and Productivity Solution with built in IT
New compelling usages in one intuitive Customizable UI

GIGABYTE Patented DualBIOS™ (UEFI) Design

GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC’s most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a ‘Main BIOS’ and a ‘Backup BIOS’, making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.

USB 3.0 Ports Onboard

With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users legacy USB 2.0 devices will still work.

Cloud Station™

GIGABYTE Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.

Humidity Protection with Glass Fabric PCB

There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.

High ESD Ethernet & USB Port Protection

GIGABYTE motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. With pairing the dedicated protection filters, the Ethernet LAN and USB ports can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.

High Temperature Protection of Lower RDS(on) MOSFETs Design

GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.

SKU: GA-H110M-S2PH Categories: ,

Gigabyte GA-H110M-S2PH INTEL Motherboard

Weight 1 kg
brands

GIGABYTE

CPU Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)
Chipset Intel® H110 Express Chipset
Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR4 2400/2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
(Please refer “Memory Support List” for more information.)
Onboard Graphics Integrated Graphics Processor – Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz
Support for HDMI 1.4 version.
Maximum shared memory of 1024 MB
Audio Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slots conform to PCI Express 3.0 standard.)
1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
2 x PCI slots
Storage Interface Chipset:
4 x SATA 6Gb/s connectors
USB Chipset:
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper

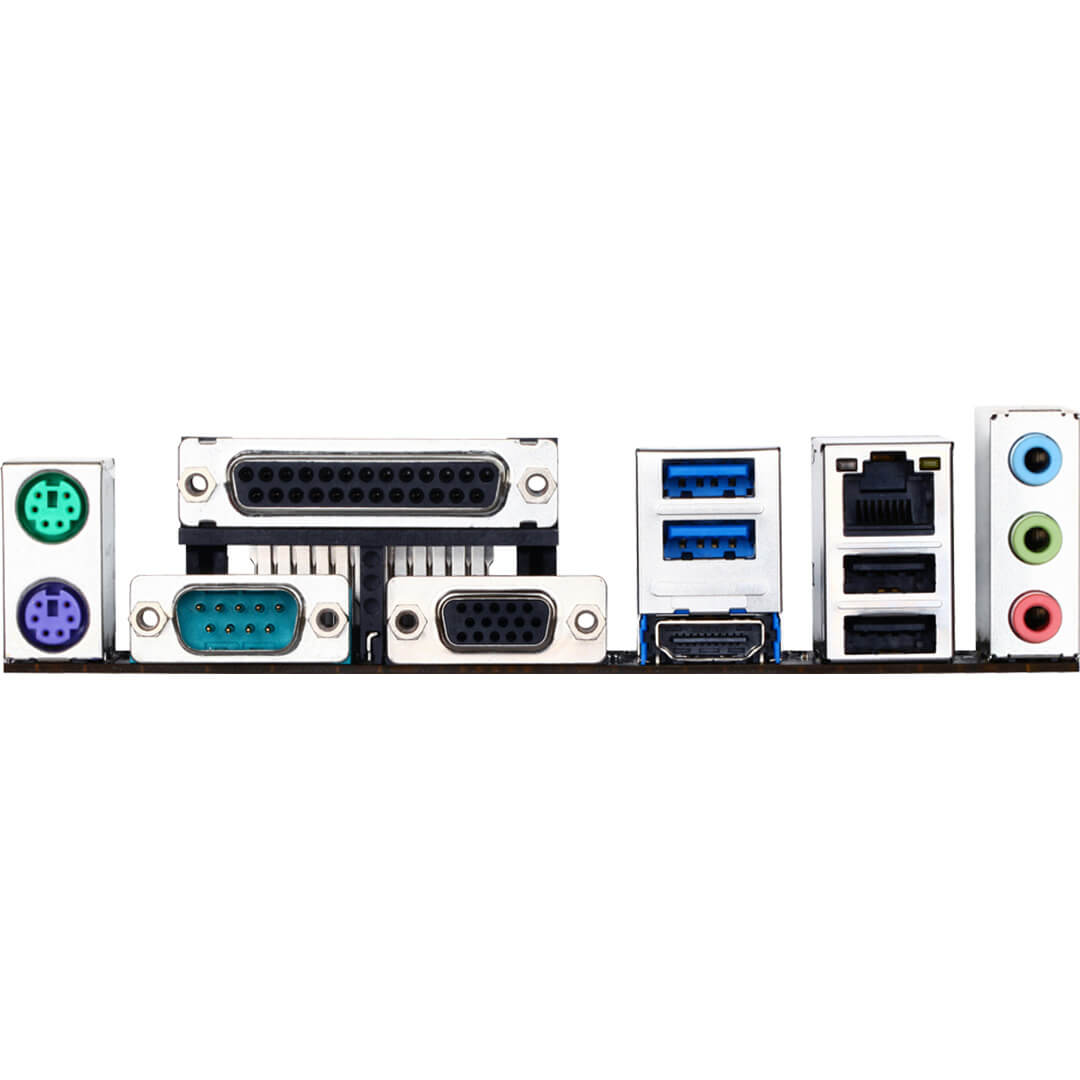

Back Panel Connectors 1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x D-Sub port
1 x parallel port
1 x serial port
1 x HDMI port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller iTE® I/O Controller Chip
H/W Monitoring System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
Whether the fan speed control function is supported will depend on the cooler you install.
BIOS 2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for APP Center
Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
Support for Q-Flash
Support for Xpress Install
Support for Smart Switch
Bundled Software Norton® Internet Security (OEM version)
cFosSpeed
Operating System Windows® 10 64-bit (for 7th Generation Intel® Processors)
Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7.
Form Factor Micro ATX Form Factor; 24.4cm x 18.0cm
