Fractal Design Ion+ 560W Platinum 80 Plus Platinum Power Supply


Out of stock

  • 80 PLUS Certification: Platinum
  • PCIe 6+2 pin: 4
  • SATA: 6
  • Peripheral: 4
  • 10 Years Warranty

9,792.00 18,153.00

Out of stock

Email when stock available

Fractal Design Ion+ 560W Platinum 80 Plus Platinum Power Supply – FD-PSU-IONP-560P-BK-EU

Power with a plus

  • Fully modular design for reduced clutter and maximum ease of installation
  • Equipped with a custom-tailored Fractal Design Dynamic Series 140 mm fan with exceptionally low minimum speed and true long-life FDB
  • Extensive 10 year warranty

Japanese capacitors

Premium Japanese 105°C capacitors provide enhanced reliability and durability

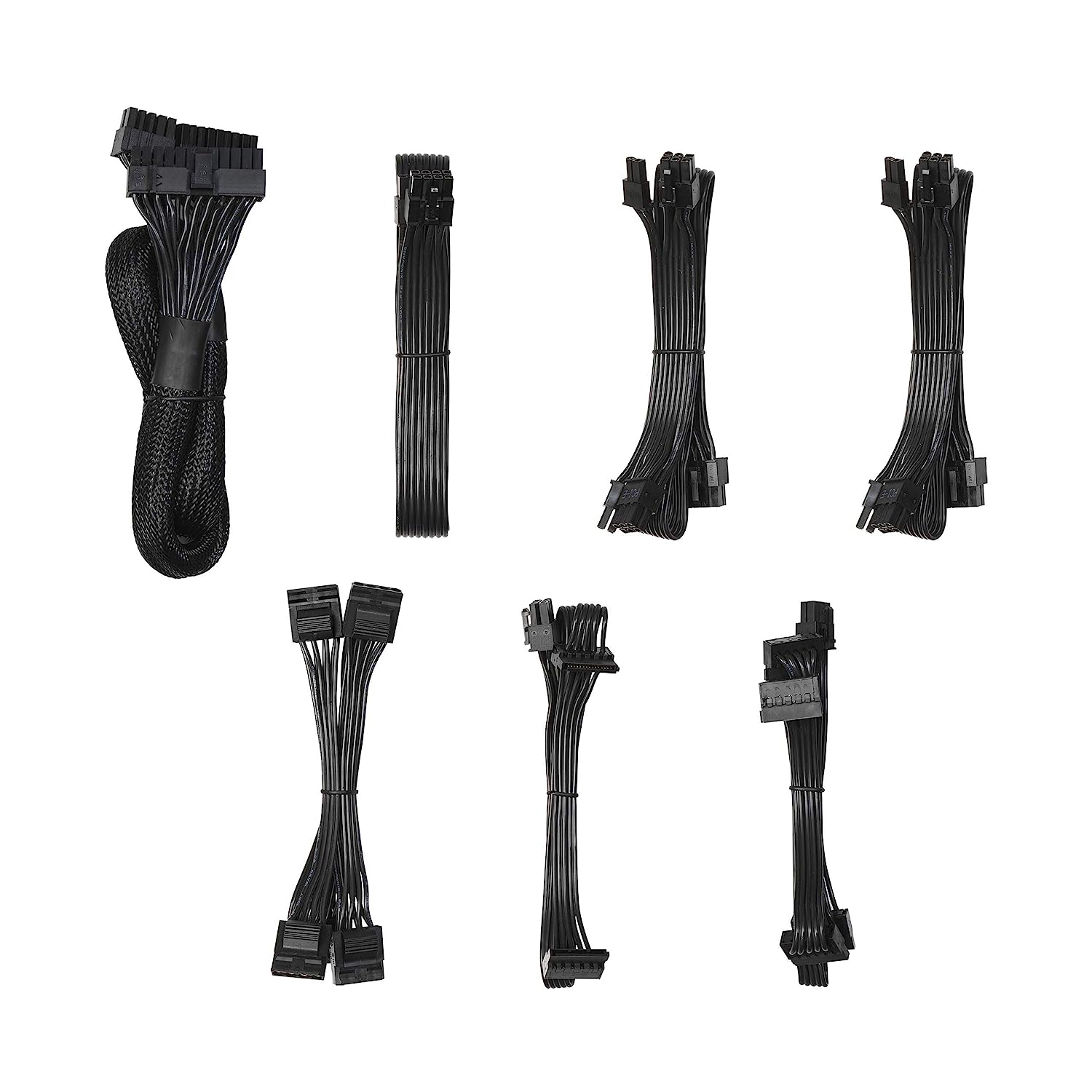

UltraFlex Cables

Fractal Design UltraFlex DC wires have game-changing flexibility for effortless cable-routing and connectors that twist and bend to fit your installation — not fight it

Zero RPM

User selectable Zero RPM mode allows for either silent, passive operation in low load situations or continuous low speed fan operation for additional cooling

More power, less heat

The Ion+ Platinum is rated 80 PLUS® Platinum Efficiency for its ability to offer electrical output of the highest quality, while generating as little heat as possible.

  • 80 PLUS® Platinum Efficiency for optimized electrical performance and reduced heat generation
  • Outstanding output quality with tight voltage regulation and extremely low noise and ripple
  • Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection
SKU: FD-PSU-IONP-560P-BK-EU Categories: , GTIN: 843276101954

Fractal Design Ion+ 560W Platinum 80 Plus Platinum Power Supply - FD-PSU-IONP-560P-BK-EU

Weight 2.6 kg



80 PLUS® Certification Platinum
Modular cables Fully modular
Cable type Modular 24-pin: Braided sleeve UltraFlex wire Others: Flat UltraFlex wire
Fan type Customized 140 mm FDB bearing Fractal Design Dynamic Series fan
Maximum operating temperature at full load 50° C
Semi-passive operation Yes, user selectable (Zero RPM)
Sleep State Compliance C6/C7
Warranty 10 years
Capacitors Japanese
Protection features Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection
Approvals & Certifications CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Life expectancy (MTBF) at max output load 100,000 hours
Input voltage 100-240V AC
Input frequency 50-60 Hz
Input current 10A/5A
Number of 12V rails 1
PSU specification compliance ATX12V 2.4 / EPS12V 2.92
Standby efficiency ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb)
Unit measurements 150 x 150 x 86 mm
Unit weight (unit only) 1.61 kg



ATX 24-pin 1
ATX12V 4+4 pin / EPS12V 8-pin 1
PCIe 6+2 pin 4
Peripheral 4


Cable configuration (length between connectors)

ATX 24-pin 600
ATX12V 4+4 pin 700
EPS12V 8-pin N/A
PCIe 6+2 pin 550+120 mm x2
SATA 400+120+120+120, 650+120
Peripheral 400+120+120+120


DC output

3.3 V 20A
5 V 20A
3.3 V and 5 V combined 110W
12 V 46.6A
-12 V 0.3A
5 V Standby (+5 Vsb) 3A
Total Power 560W



Package content Ion+ PSU with protective bag, Modular cables in a convenient storage bag, Screw pack with Velcro cable ties, AC power cord (localized), User manual
Package dimensions (W x H x D) 325 x 110 x 210 mm
Package weight 2.6 kg
EAN 7340172701958
UPC 843276101954
Product code FD-PSU-IONP-560P-BK
