Cooler Master Masterbox TD500 Mesh V2 Mid Tower Cabinet Black

COOLER MASTER

  • Expansion Slots: 7
  • Max Fan Supports: 7
  • Max Radiator Supports: 360 mm
  • SKU: TD500V2-KGNN-S00
  • 2 Years Warranty

8,200.00 10,500.00

Cooler Master Masterbox TD500 Mesh V2 Mid Tower Cabinet Black – TD500V2-KGNN-S00

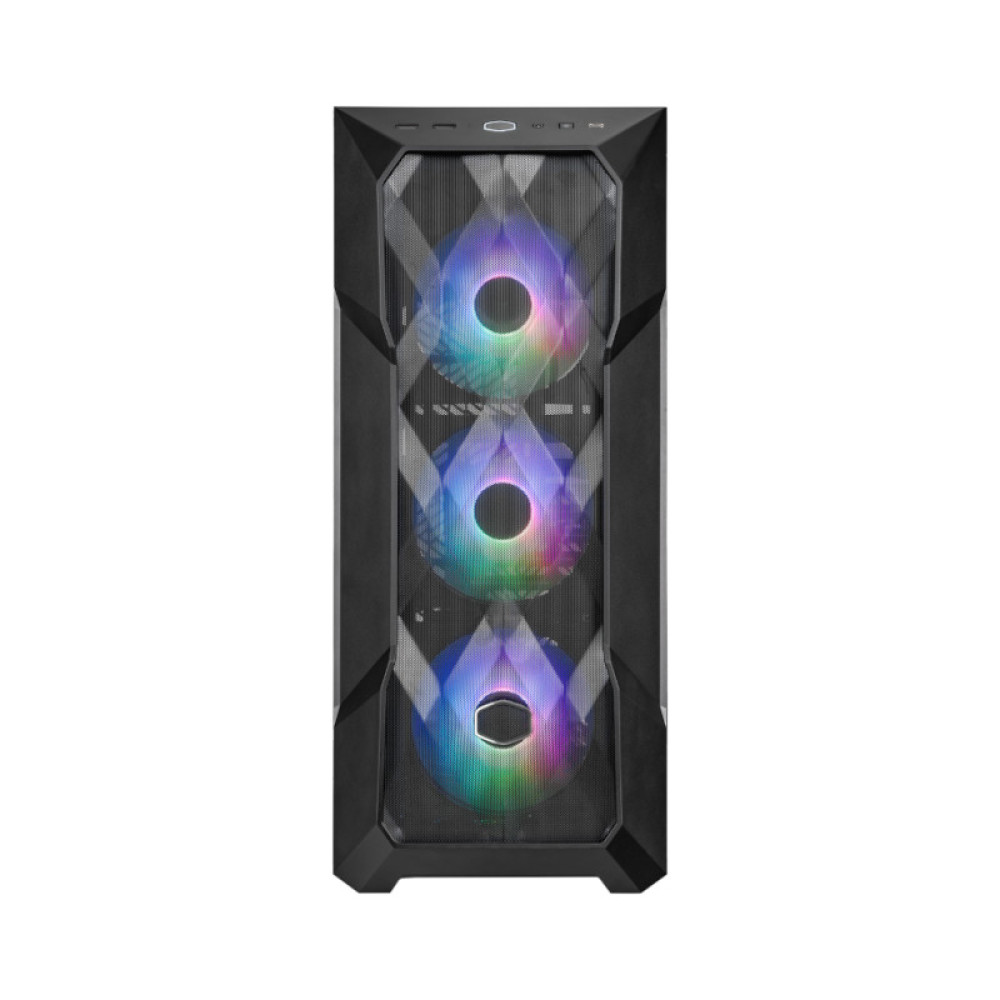

FINEMESH PERFORMANCE FRONT PANEL

Polygonal FineMesh features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration.

AVAILABLE IN BOTH BLACK & WHITE COLORATIONS

MasterBox TD500 Mesh V2 is available in both black and white so you can choose the color that best matches your setup!

THREE CF120 ARGB FANS INCLUDED

Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.

USB 3.2 GEN 2 TYPE C SUPPORT

USB 3.2 Gen 2 Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.

ARGB/FAN HUB INCLUDED

The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.

REMOVABLE TOP PANEL

The top panel is entirely removable for improved access during assembly and ease of mounting of cooling solutions.

TOOL-FREE CRYSTALLINE TG SIDE PANEL

Featuring a crystalline tempered glass side panel, completely toolless for quick access to the internals.

VERSATILE COOLING OPTIONS

Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.

PSU SHROUD WITH REMOVABLE COVER

MasterBox TD500 Mesh V2’s removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.

HARDWARE COMPATIBILITY

MasterBox TD500Mesh V2 is natively compatible with ITX, M-ATX and ATX motherboards.

E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12″ x 10.7″.

SKU: TD500V2-KGNN-S00 Categories: ,

Cooler Master Masterbox TD500 Mesh V2 Mid Tower Cabinet Black - TD500V2-KGNN-S00

Weight 5 kg
brands

COOLER MASTER

Model Number TD500V2-KGNN-S00
Exterior Color Black
Materials – Exterior Steel, Mesh, Plastic
Materials – Left Side Panel Tempered Glass
Dimensions (L x W x H) 499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions)
Volume 50L (excl. Protrusions)
Motherboard Support Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12″ x 10.7″ motherboards, may impact cable management feature)
Expansion Slots 7
3.5″ Drive Bays 2
2.5″ Drive Bays 3
I/O Panel – USB Ports 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C
I/O Panel – Audio In / Out 1x Audio Jack
I/O Panel – Other 1x ARGB Fan Hub
Pre-installed Fans – Front 3x 120mm CF120 ARGB
Fan Support – Top 3x 120mm, 2x 140mm
Fan Support – Front 3x 120mm, 2x 140mm
Fan Support – Rear 1x 120mm
Radiator Support – Top 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)
Radiator Support – Front 120mm, 140mm, 240mm, 280mm, 360mm
Radiator Support – Rear 120mm
Clearance – CPU Cooler 165mm / 6.49″
Clearance – PSU 200mm, (Recommended up to 170mm)
Clearance – GFX 410mm / 16.14″
Cable Routing – Behind Motherboard Tray 19mm / 0.74″
Dust Filters Front, Top, Bottom
Power Supply Support Bottom Mount, ATX
Warranty 2 years
Series MasterBox Series
Size Mid Tower
