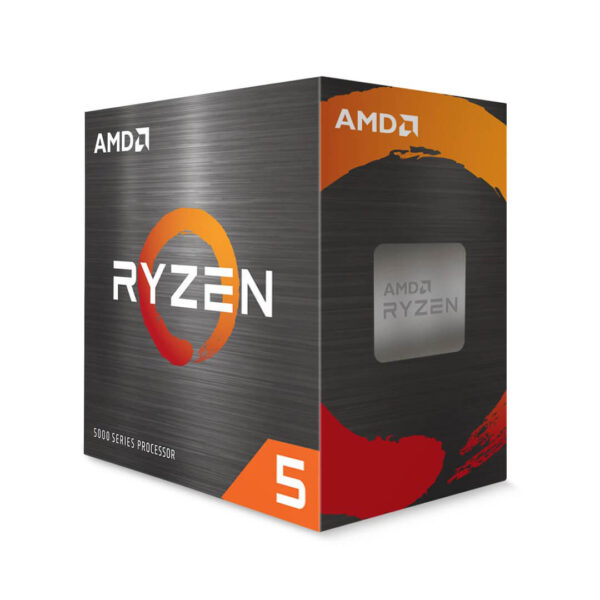

AMD Ryzen 5 5500 Desktop Processor – 100-100000457BOX
AMD StoreMI Technology
A fast and easy way to expand and accelerate the storage in a desktop PC with an AMD Ryzen™ processor.
AMD “Zen 3” Core Architecture
The fastest cores in the world for PC gamers.
AMD Ryzen™ VR-Ready Premium
For the best possible VR experiences, AMD offers select Ryzen™ VR-Ready Premium processors.
AMD Ryzen 5 5500 Desktop Processor - 100-000000457BOX
| Weight | 0.02 kg |
|---|---|
| brands | AMD |
General Specifications
| Platform | Desktop |
|---|---|
| Market Segment | Mainstream Desktop |
| Product Family | AMD Ryzen™ Processors |
| Product Line | AMD Ryzen™ 5 Desktop Processors |
| Consumer Use | Yes |
| Former Codename | “Cezanne” |
| Architecture | “Zen 3” |
| # of CPU Cores | 6 |
| Multithreading (SMT) | Yes |
| # of Threads | 12 |
| Max. Boost Clock | Up to 4.2GHz |
| Base Clock | 3.6GHz |
| L1 Cache | 384KB |
| L2 Cache | 3MB |
| L3 Cache | 16MB |
| Default TDP | 65W |
| Processor Technology for CPU Cores | TSMC 7nm FinFET |
| CPU Compute Die (CCD) Size | 180mm² |
| Package Die Count | 1 |
| Unlocked for Overclocking | Yes |
| CPU Socket | AM4 |
| Socket Count | 1P |
| Supporting Chipsets | X570 X470 X370 B550 B450 B350 A520 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | AMD Wraith Stealth |
| Max. Operating Temperature (Tjmax) | 90°C |
| Launch Date | 4/4/2022 |
| *OS Support | Windows 11 – 64-Bit Edition Windows 8.1 – 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
Connectivity
| USB Type-C® Support | Yes |
|---|---|
| Native USB 4 (40Gbps) Ports | 0 |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
| Native USB 2.0 (480Mbps) Ports | 0 |
| Native SATA Ports | 2 |
| PCI Express® Version | PCIe 3.0 |
| Native PCIe® Lanes (Total/Usable) | 24/20 |
| Additional Usable PCIe Lanes from Motherboard | AMD X570: 16x Gen 3 AMD X470: 2x Gen 3 AMD X470: 8x Gen 2 |
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| System Memory Type | DDR4 |
| Memory Channels | 2 |
| Max. Memory | 128GB |
| System Memory Subtype | UDIMM |
| System Memory Specification | Up to 3200MHz |
| Max Memory Speed | 2x1R: DDR4-3200 2x2R: DDR4-3200 4x1R: DDR4-2933 4x2R: DDR4-2667 |
| ECC Support | No |
Graphics Capabilities
| Integrated Graphics | No |
|---|---|
| Graphics Model | Discrete Graphics Card Required |
Product IDs
| Product ID Boxed | 100-100000457BOX |
|---|
Key Features
| Supported Technologies | AMD StoreMI Technology AMD “Zen 3” Core Architecture AMD Ryzen™ VR-Ready Premium |
|---|
