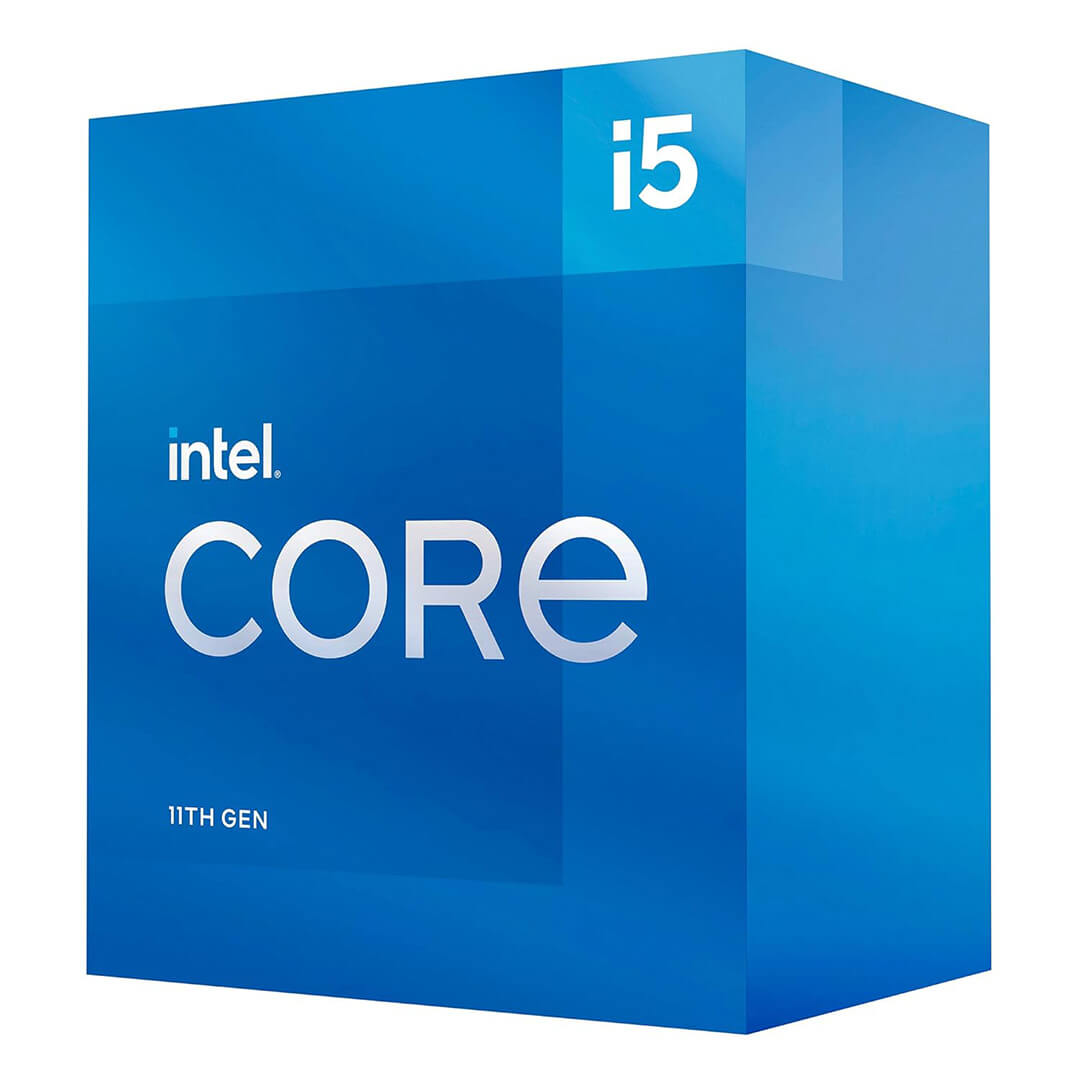

Intel Core i5-11400 Processor – BX8070811400
Power up your productivity, gaming, and content creation experiences by installing the Intel Core i5-11400 2.6 GHz Six-Core LGA 1200 Processor into your computer system. Built using a 14nm process, this 11th generation desktop processor features a base clock frequency of 2.6 GHz and a 4.4 GHz turbo frequency with 12MB of cache, six cores, and twelve threads for fast and reliable performance. The Core i5-11400 also includes support for PCI Express 4.0 and dual-channel DDR4 memory at 3200 MHz to help run and multitask a variety of demanding applications and games using technologies such as built-in AI acceleration. Performance can be further enhanced by installing Intel Optane memory to cache frequently accessed data.
The Core i5-11400 features integrated Intel UHD 730 Graphics driven by the powerful Xe architecture. A thermal solution is included to help maintain optimal temperatures and the processor is backed by a 3-year warranty.
PCIe 4.0
This processor supports up to 20 PCIe 4.0 lanes, delivering exceptional data throughput with compatible devices.
AI Acceleration
Intel Deep Learning Boost (VNNI) technologies help to enhance the performance of deep learning workloads.
Thunderbolt 4 & USB4
With Thunderbolt 4 technology, this processor supports data transfer speeds of up to 40 Gb/s with compatible devices and you can connect up to two 4K monitors simultaneously. USB4 technology supports a 20 Gb/s throughput with compatible devices and up to one 4K monitor.
Intel Iris Xe Graphics
The integrated graphics deliver fast, rich 3D performance for high-quality visuals.
Intel Core i5-11400 Processor - BX8070811400
| Weight | 0.5 kg |
|---|---|
| brands | INTEL |
CPU Specifications
| Total Cores | 6 |
|---|---|
| Total Threads | 12 |
| Max Turbo Frequency | 4.40 GHz |
| Intel® Turbo Boost Technology 2.0 Frequency‡ | 4.40 GHz |
| Processor Base Frequency | 2.60 GHz |
| Cache | 12 MB Intel® Smart Cache |
| Bus Speed | 8 GT/s |
| TDP | 65 W |
Memory Specifications
| Max Memory Size (dependent on memory type) | 128 GB |
|---|---|
| Memory Types | DDR4-3200 |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 50 GB/s |
| ECC Memory Supported ‡ | No |
Processor Graphics
| Processor Graphics ‡ | Intel® UHD Graphics 730 |
|---|---|
| Graphics Base Frequency | 350 MHz |
| Graphics Max Dynamic Frequency | 1.30 GHz |
| Graphics Video Max Memory | 64 GB |
| Execution Units | 24 |
| 4K Support | Yes, at 60Hz |
| Max Resolution (HDMI)‡ | 4096×2160@60Hz |
| Max Resolution (DP)‡ | 5120 x 3200 @60Hz |
| Max Resolution (eDP – Integrated Flat Panel)‡ | 5120 x 3200 @60Hz |
| DirectX* Support | 12.1 |
| OpenGL* Support | 4.5 |
| Intel® Quick Sync Video | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology | Yes |
| Intel® Clear Video Technology | Yes |
| # of Displays Supported ‡ | 3 |
| Device | ID0x4C8B |
| OpenCL* Support | 3.0 |
Expansion Options
| Scalability | 1S Only |
|---|---|
| PCI Express Revision | 4.0 |
| PCI Express Configurations ‡ | Up to 1×16+1×4, 2×8+1×4, 1×8+3×4 |
| Max # of PCI Express Lanes | 20 |
Package Specifications
| Sockets Supported | FCLGA1200 |
|---|---|
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2019C |
| TJUNCTION | 100°C |
| Package Size | 37.5 mm x 37.5 mm |
Advanced Technologies
| Intel® Gaussian & Neural Accelerator | 2.0 |
|---|---|
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Optane™ Memory Supported ‡ | Yes |
| Intel® Thermal Velocity Boost | No |
| Intel® Turbo Boost Max Technology 3.0 ‡ | No |
| Intel® Turbo Boost Technology ‡ | 2.0 |
| Intel vPro® Platform Eligibility ‡ | No |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2, Intel® AVX-512 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology ‡ | Yes |
| Intel® Stable Image Platform Program (SIPP) | No |
Security & Reliability
| Intel® AES New Instructions | Yes |
|---|---|
| Secure Key | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | No |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology ‡ | No |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
