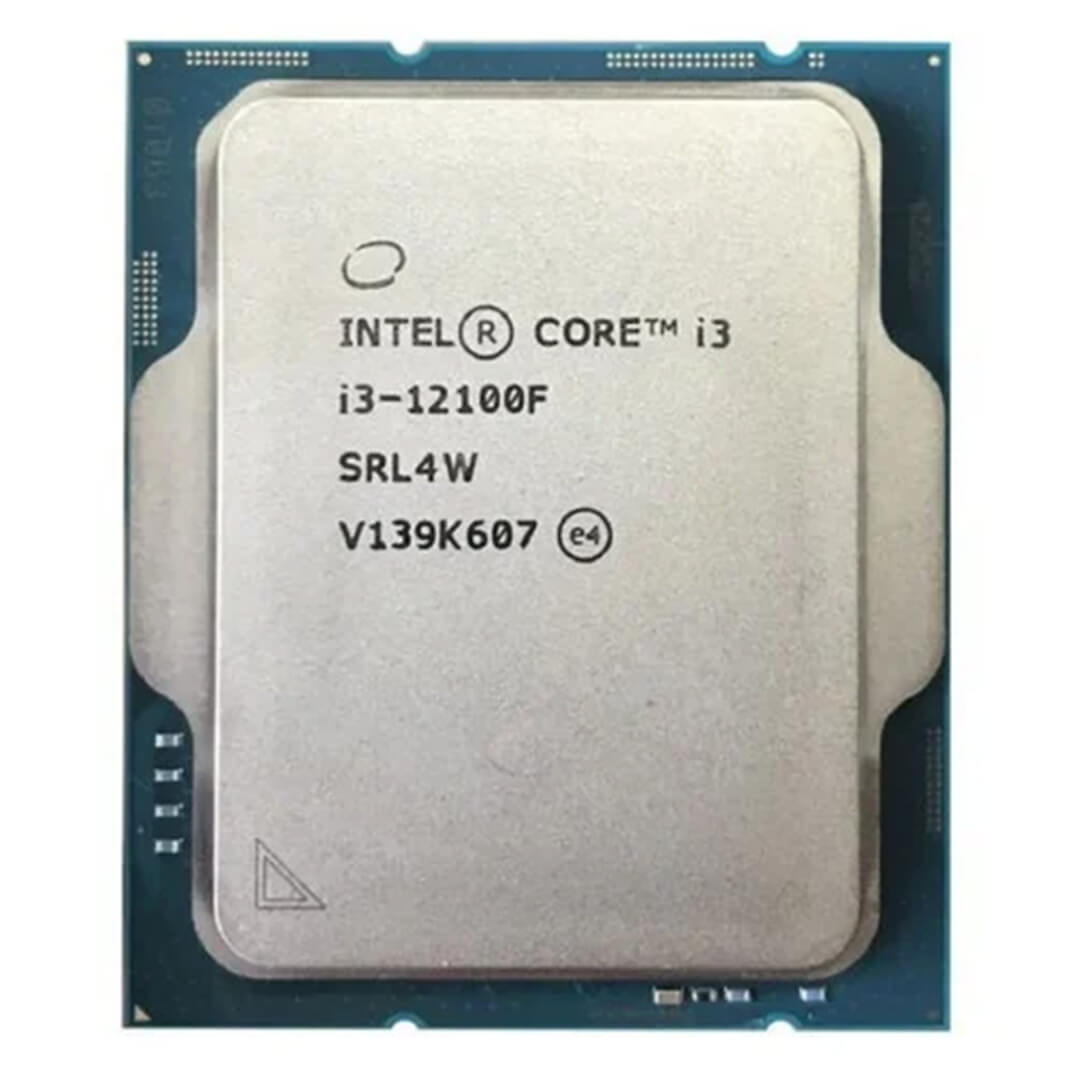

Intel Core i3 12100F 12 Gen Desktop Processor OEM (Without Box & Fan) – CM8071504651013
Intel designs advanced, high-performance processors for every usage, including enterprise-scale servers, IoT devices, laptops, desktops, workstations, and mobile devices. To find information, specifications, downloads and support for each processor, start by selecting a Processor family.
Intel Core i3 12100F 12 Gen Desktop Processor OEM (Without Box & Fan)
| Weight | 0.1 kg |
|---|---|
| brands | INTEL |
CPU Specifications
| Total Cores | 4 |
|---|---|
| # of Performance-cores | 4 |
| # of Efficient-cores | 0 |
| Total Threads | 8 |
| Max Turbo Frequency | 4.30 GHz |
| Performance-core Max Turbo Frequency | 4.30 GHz |
| Performance-core Base Frequency | 3.30 GHz |
| Cache | 12 MB Intel® Smart Cache |
| Total L2 Cache | 5 MB |
| Processor Base Power | 60 W |
| Maximum Turbo Power | 89 W |
Supplemental Information
| Embedded Options Available | Yes |
|---|
Memory Specifications
| Max Memory Size (dependent on memory type) | 128 GB |
|---|---|
| Memory Types | Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 76.8 GB/s |
Processor Graphics
| Processor Graphics ‡ | Intel® UHD Graphics 730 |
|---|---|
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.40 GHz |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units | 24 |
| Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
| Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP – Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| Multi-Format Codec Engines | 1 |
| Intel® Quick Sync Video | Yes |
| Intel® Clear Video HD Technology | Yes |
| # of Displays Supported ‡ | 4 |
| Device ID | 0x4692 |
| OpenCL* Support | 2.1 |
Expansion Options
| Direct Media Interface (DMI) Revision | 4.0 |
|---|---|
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ‡ | Up to 1×16+4, 2×8+4 |
| Max # of PCI Express Lanes | 20 |
Package Specifications
| Sockets Supported | FCLGA1700 |
|---|---|
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020C |
| TJUNCTION | 100°C |
| Package Size | 45.0 mm x 37.5 mm |
Advanced Technologies
| Intel® Gaussian & Neural Accelerator | 3.0 |
|---|---|
| Intel® Thread Director | No |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Optane™ Memory Supported ‡ | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ | No |
| Intel® Turbo Boost Technology ‡ | 2.0 |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
Security & Reliability
| Intel® Threat Detection Technology (TDT) | Yes |
|---|---|
| Intel® Standard Manageability (ISM) ‡ | Yes |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
