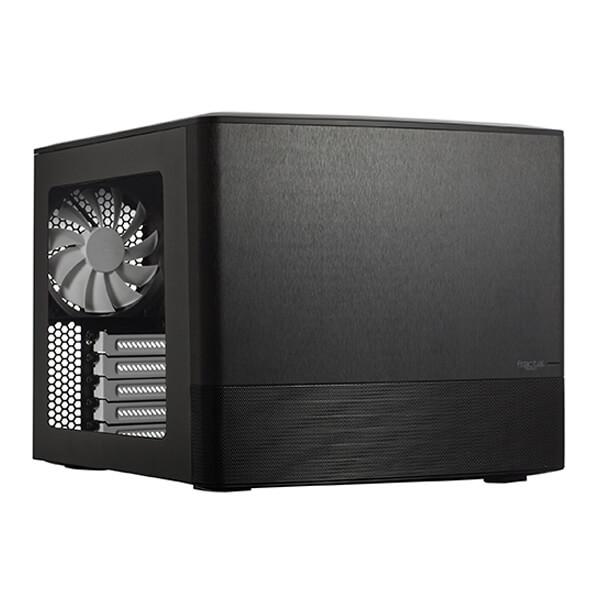

Fractal Design Node 804 Micro-ATX Cabinet Black – FD-CA-NODE-804-BL-W
Key features
The dual chamber layout in the Node 804 separates hot running components from the cooler ones and allows for unrestricted airflow over the motherboard, processor and graphics card.
Highly effective dual chamber case layout for best possible cooling with excellent water cooling compatibility, supporting up to four radiators simultaneously
Minimalistic design with an elegant brushed aluminum front panel
Unique hard drive mounting system, fitting up to 8x 3.5″, 4x 2.5” or up to 10x 3.5”, 2x 2.5″ drives HDD/SSD
Three Fractal Design Silent Series R2 fans included with the case and space for an additional seven fans, fan controller included
Featuring a window side panel to show off your set up in style
Additional space in the front to mount a slim slot-in ODD, optical bay drive, and 2x 2.5″ drives
Five expansion slots that allows for multiple GPU setups
Water-cooling ready
Excellent water cooling support with space for up to four radiators simultaneously.
Showcase your hardware
Featuring a window side panel to show off your set up in style
3x Silent Fans included
Three Fractal Design Silent Series R2 fans included with the case and space for an additional seven fans
Fractal Design Node 804 Micro-ATX Cabinet Black - FD-CA-NODE-804-BL-W
Weight
7.7 kg
brands
FRACTAL DESIGN
Specifications
3,5″ HDD positions
8
2,5″ SSD positions
2
Extra positions for either 3,5″ or 2,5″ drives
2
Expansion slots
5
Front ports
2x USB 3.0, Audio in/out, Power button with LED (blue), HDD activity LED (white)
Total fan mounts
10
Front fan
4x 120 mm
Top fan
4x 120/140 mm
Rear fan 1
1x 120/140 mm (included is 1 hydraulic bearing 120 mm Silent Series R2 fan @ 1000 RPM)
Rear fan 2
1x 120 mm (included is 1 hydraulic bearing 120 mm Silent Series R2 fan @ 1000 RPM)
Dust filters
Front fans, Top fans, Bottom
Fixed velcro straps
Yes
Left side panel
Clear window
Right side panel
Steel
Compatibility
Power supply type
ATX
Motherboard compatibility
Micro ATX, Mini ITX
Front radiator (left chamber)
240 mm (up to 60 mm thick (with fans) and 278 mm tall; using a radiator in this position prevents the use of a fan in the top position just next to it)
Front radiator (right chamber)
240 mm (up to 60 mm thick (with fans) and 278 mm tall)
Top radiator (left chamber)
240 mm (up to 130 mm thick (with fans); radiators in this position limits the height of memory modules to 48 mm tall)
Top radiator (right chamber)
240/280 mm (up to 130 mm thick (with fans) may be fitted if the HDD drive bays are taken out or placed elsewhere)
PSU max length
260 mm
GPU max length
320 mm, 290 mm (if a fan is installed in the lower position in the front)
CPU cooler max height
160 mm
Dimensions
Case dimensions (WxHxD)
344 x 307 x 389 mm
Net weight
6 kg
Package dimensions (WxHxD)
370 x 468 x 412 mm
Package weight
7.7 kg
Volume
40.3 liters
Other
Warranty
2 Years
Package content
Node 804 computer case, accessory box & user manual
EAN
7350041082019
UPC
817301012010
Product code
FD-CA-NODE-804-BL-W
Additional information
Available for System Integrators
